Bẫy hơi phao tự do Nordsteam NST 55X

Liên hệ báo giá

Model: NST 55X
Thân: thép đúc (WCB)
Nắp: thép đúc (WCB)
Phích cắm: 2Cr13
Phao nổi: SS 304
Xuất xứ: Thổ Nhĩ Kỳ

Categories: Bẫy hơi Nordsteam, Nordsteam, Bẫy hơi

Mô tả
Download

Đặc điểm bẫy hơi phao tự do NST55X

NST-55X Free float steam traps are used in the steam pipe-lines and the heating systemsi paper , food, petrochemical and petroleum industries ,etc. They are especially prefered where there is need for fast heating and where heat controlling is strictly significant. It doesn’t have any wearing component chronically. It has a long service life and notable energy savings. It starts up quickly and drains condensate continuously. Low level noise, Easy to repair. As it has a large surface area of screen built-in , it ensures trouble free operation for a long time. They are resistant to water hammer.

Sơ đồ cấu tạo bẫy hơi phao – model NST55X

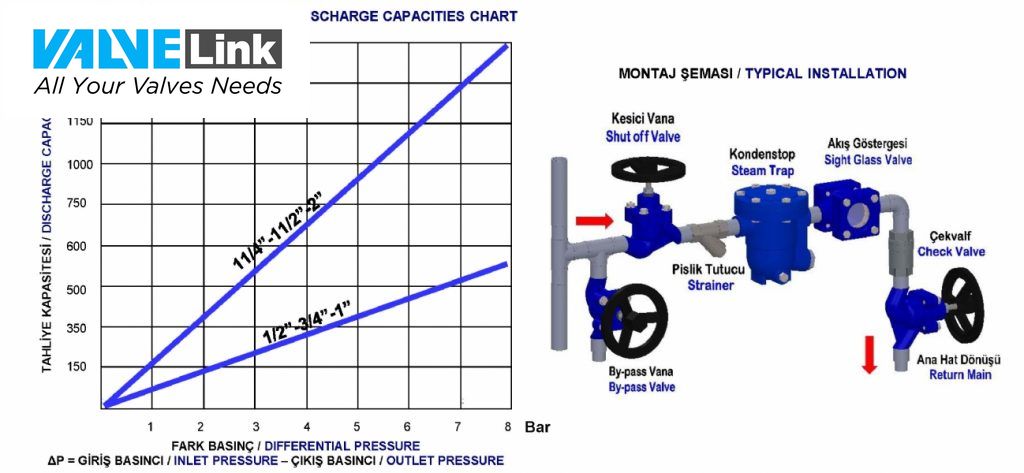

Hướng dẫn lắp đặt bẫy hơi phao

Traps should be installed in easily accessible position and location for easy servicing. The maximum differential pressure which is stamped on product name plate must be bigger than the maximum differential pressure of the whole system. Be sure to install trap horizontally to ensure proper operation.
1.Install the trap below and close to the equipment which will drain and avoid long lenghts of horizontal piping ahead of trap.
2.Pitch all horizontal inlet lines towards the stream trap to help eliminate potential water hammer problems.
3.A strainer should always be installed ahead of trap.
4.Union fittings or flange connection and shut off valves should be installed on both sides of trap for ease of servicing and trap testing.
5.Install a test valve in outlet pipe and cap it,which allows trap to be tested. Cap is used as safety precaution when unit is not being tested.
6.Blowdown piping using full steam pressure for 5 minutes prior to service. This cleaning process will remove debris from the pipe-line.
7.Perform maintenance and cleaning 2/3 days after start-up until system is clean. Then perform maintenance every 6/12 months once in normal operation.

Hướng dẫn bảo trì

With timely check-up, regularly and properly maintenance, Nordsteam NST-55X series will provide optimum performance and long life cycle. The internal components of steam trap can be replaced without removing the trap from the line. The trap mechanism should be inspected periodically and all dirt should be removed from working parts. Worn parts must be replaced with new ones. Whenever the bonnet of steam trap is taken apart, always, replace the gasket of the bonnet with a new one.

Thông số kỹ thuật

SPARE PARTS
No	Description	Material
1	Body	Carbon Steel (WCB)
2	Cleaning Plug	2Cr13
3	Float	SS 304
4	Screen	SS 304
5	Segment	A3
6	Bonnet	Carbon Steel (WCB)
7	Temperature Sensitive X-Element	Hastelloy
8	Air Eliminator Seat	2Cr13
9	Screw Plug	45
10	Orifice Stopper	2Cr13
11	Orifice	2Cr13
12	Gasket	Steel
13	Bonnet Plug	Steel
14	Bonnet Gasket	SS 304 + Graphite
15	Stud Bold	SAE Gr.5
16	Nut	SAE Gr.5
