Bẫy hơi gầu đảo Nordsteam NST-88HSP

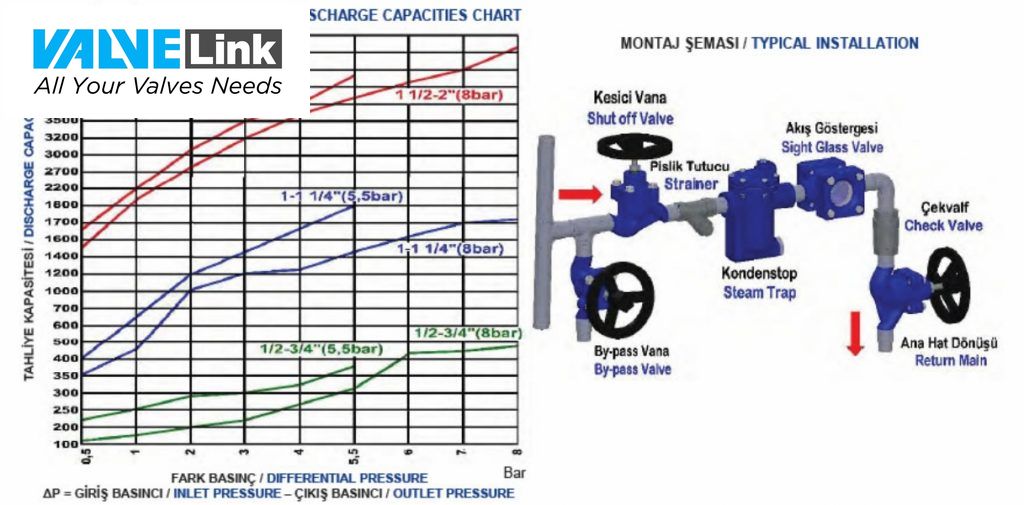

Hướng dẫn lắp đặt bẫy hơi phao
Traps should be installed in easily accessible position and location for easy servicing. The maximum differential pressure stamped on product name plate must be greater than the maximum pressure differential across the trap. The trap must be installed with the body horizontally so that bucket will rise and fall vertically. The inlet and outlet connections should be in a horizontal plane for horizontal traps and a vertical plane with inlet on the bottom for vertical traps. The trap should be installed below the drain point, so that a water seal can be maintained around the open end of the bucket.
1.Install the trap below and close to the equipment which will drain condensate, avoid long lenghts of horizontal piping ahead of trap.
2.Pitch all horizontal inlet lines towards the stream trap to help eliminate potential water hammer problems.
3.All models should have a strainer installed ahead of trap.
4.Union fittings and shut off valves should be installed on both sides of trap for ease of servicing and trap testing.
5.A test and pressure relief valve should be installed to assure relief of internal pressure prior to servicing.
6.A check valve should be installed on return piping if there will be a pressurized return line or the trap drains to an over head return line.
Inverted bucket traps may need to be primed before being placed into service. Either of the following methods can be used.
1.Remove pipe plug from trap cover. Pour water into trap until full and replace pipe plug.
2.Keep return piping valve closed until trap fills with condensate, then slowly open valve.
Hướng dẫn bảo trì
The trap mechanism should be inspected periodically and dirt should be removed from working parts. Worn parts must be replaced.
Thông số kỹ thuật
SPARE PARTS | ||
No | Description | Material |
1 | Bonnet | CI ASTM A48 CLASS 30 |
2 | Body | CI ASTM A48 CLASS 30 |
3 | Valve | Chrome Steel |
4 | Valve Seat | Chrome Steel |
5 | Lever | SS 304 |
6 | Bucket Clip | SS 304 |
7 | Bucket | SS 304 |
8 | Thimble | SS 304 |
9 | Strainer Gasket | Steel |
10 | Valve Clip | SS 304 |
11 | İnternal Tube | Steel Pipe |
12 | Gasket | SS 304 + Graphite |
13 | Cover Plug | Steel |
14 | Strainer Plug | Steel |
15 | Strainer | SS 304 |
16 | Cover Bolt | SAE Gr.5 |
DIMENSIONS | ||||
Size | L | L1 | H | H1 |
1/2’’ | 128mm | 95mm | 157mm | 87mm |
3/4’’ | 128mm | 95mm | 184mm | 113mm |
1’’ | 167mm | 143mm | 238mm | 138mm |
1 1/4’’ | 209mm | 178mm | 320mm | 192mm |
11/2’’ | 250mm | 220mm | 396mm | 248mm |
2’’ | 250mm | 220mm | 396mm | 248mm |
CONNECTION | SCREWED BSP | |||||
Sizes | 1/2″ | 3/4″ | 1″ | 1/4” | 11/2’’ | 2’’ |
Weights (KG) | 3,1 | 3,6 | 8,7 | 16,0 | 28 | 31 |
OPERATING CONDITIONS | |
Max. Allowable Pressure PMA (bar) | 24 |
Max. Allowable Temperature TMA (ºC) | 300 |
Max. Differential Pressure PMD (bar) | 5,5 – 8 |
Max. Operating Pressure (bar) | 16 |
